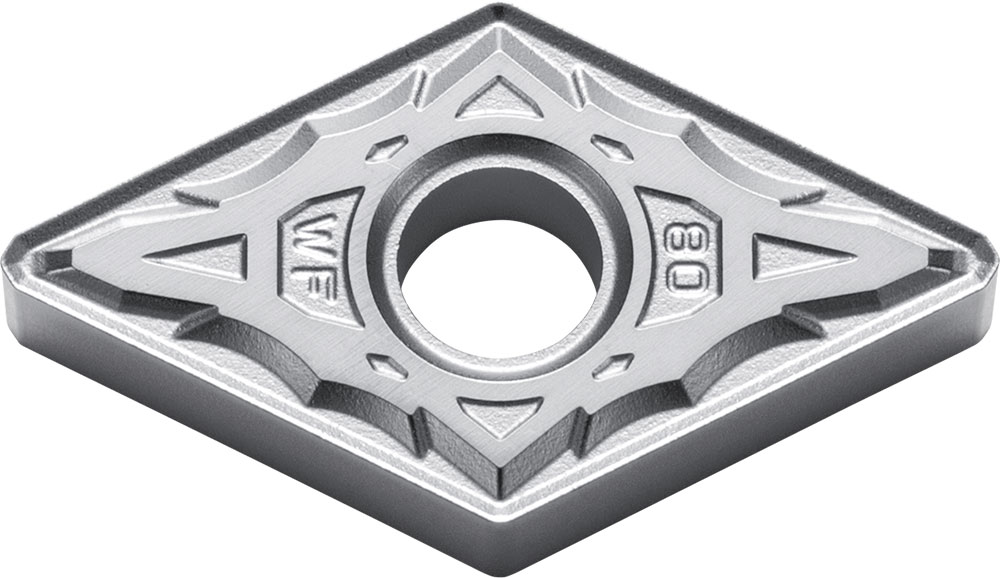

Kyocera DNMX 442WF TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR03996
$28.42
Kyocera DNMX 442WF TN620 Grade Uncoated Cermet, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
55 degrees
Thickness
1/4 Inch
Style
DNMX
Application
Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
442
Old Material Number
8849293
ANSI Part Number
DNMX442WFTN620
ISO Part Number
DNMX150608WF
Rake
Negative
Material Group / Grade
TN620
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
6.35
Chipbreaker
WF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/WE_WF_Chipbreaker.pdf
Kyocera DNMX 442WF TN620 Grade Uncoated Cermet, Indexable Turning Insert
$28.42
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
