Kyocera Turning Insert DNMX443WF CA125P: TMK00128

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00128
$32.91

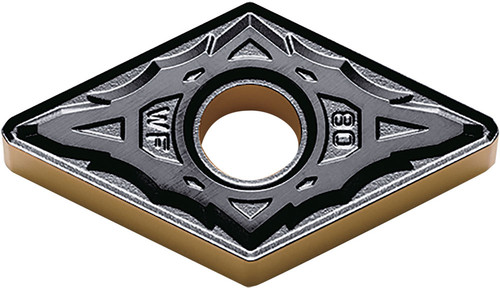

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMK00128.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
3/64
Included Angle
55
ANSI Designation
DNMX443WFCA125P
Insert Style
DNMX
Insert Thickness (Metric)
6.35
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
443
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA125P
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMX150612WF
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
WF
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
