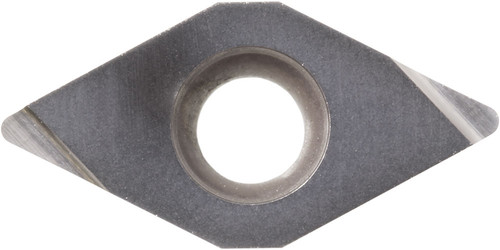

Kyocera Turning Insert DPET32505MRFSF PR1725: TLM40063

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40063
$41.06

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM40063.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
Insert Thickness (Fractional)
5/32
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DPET
Insert Thickness (Metric)
3.97
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Secondary Workpiece Material
Stainless Steel
Machining Operations
Copying, External Turning
Insert Grade
PR1725
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
DPET11T302MR-FSF
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
DPET32505MRFSFPR1725
Chip Breaker Type
FSF
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Coating Process
PVD
