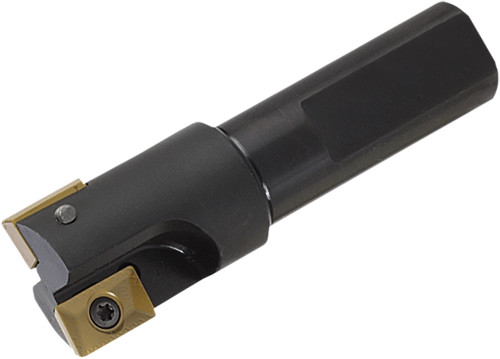

Kyocera EM 1000100S Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-OTM86399
$269.67
Kyocera EM 1000100S Standard Length, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 1.0000" Cutting Diameter for Shouldering, Facing, Slotting, Ramping Applications

Specifications

Series
EM
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Weldon Flat
No
Cutting Diameter
1 Inch
Number of Flutes
2
Application
Facing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8601005
ANSI Part Number
EM1000100S
ISO Part Number
EM1000100S
Material Group / Grade
GR99
Tool Style
EM
Cutting Diameter Minimum (Decimal)
1
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
0.60 Inch
Maximum Depth of Cut (Metric)
15.24
Cutting Diameter Minimum (Metric)
25.40
Cutting Maximum (Metric)
25.40
Connection Diameter (Decimal)
1
Connection Diameter (Metric)
25.40
Tool Entering Angle
90 degrees
Kyocera EM 1000100S Standard Length Shank, 90 Degree End Mill
$269.67
