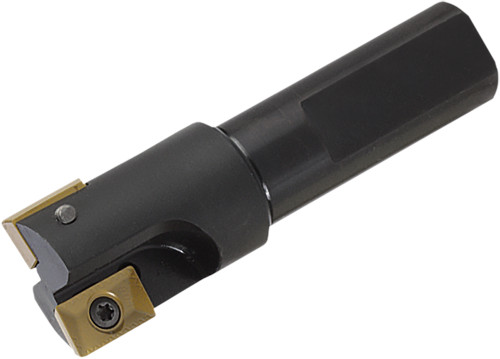

Kyocera EM 1375 Standard Length Shank, 90 Degree End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-OTM86412
$288.44
Kyocera EM 1375 Standard Length, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 1.3750" Cutting Diameter for Shouldering, Facing, Slotting, Ramping Applications

Specifications

Series
EM
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.38
Cutting Diameter (Metric)
34.93
Weldon Flat
No
Cutting Diameter
1.38 Inch
Number of Flutes
2
Application
Facing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8601018
ANSI Part Number
EM1375
ISO Part Number
EM1375
Material Group / Grade
GR99
Tool Style
EM
Cutting Diameter Minimum (Decimal)
1.38
Number of Inserts
2
Hand of Holder
Right
Max. Depth Of Cut
0.60 Inch
Maximum Depth of Cut (Metric)
15.24
Cutting Diameter Minimum (Metric)
34.93
Cutting Maximum (Metric)
34.93
Connection Diameter (Decimal)
0.75
Connection Diameter (Metric)
19.05
Tool Entering Angle
90 degrees
Kyocera EM 1375 Standard Length Shank, 90 Degree End Mill
$288.44
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
