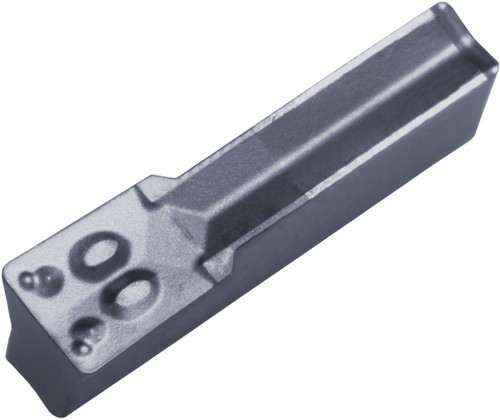

Kyocera FMM 5004 PR905 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJF10230
$27.50
Kyocera FMM 5004 PR905 Grade PVD Carbide, 5.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (K) Cast Iron

Specifications

Series
KFMS
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Cast Iron
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Grade
PR905
Cutting Width
5 mm
Thickness (Metric)
3.50
Cutting Width (Decimal)
0.20
Style
FMM
Application
Face Grooving
Thickness (Decimal)
0.14
Insert Holding Method
Clamp
Insert Length (Decimal)
0.47
Insert Length (Metric)
12
Size
5004
Old Material Number
8830576
ANSI Part Number
FMM5004PR905
ISO Part Number
FMM50-04
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.20
Cutting Width Minimum (Metric)
5
Cutting Width Maximum (Decimal)
0.20
Cutting Width Maximum (Metric)
5
Max Depth of Cut (Decimal)
1.26
Max Depth of Cut (Metric)
32
Pack quantity
10
Kyocera FMM 5004 PR905 Grade PVD Carbide, Indexable Grooving Insert
$27.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
