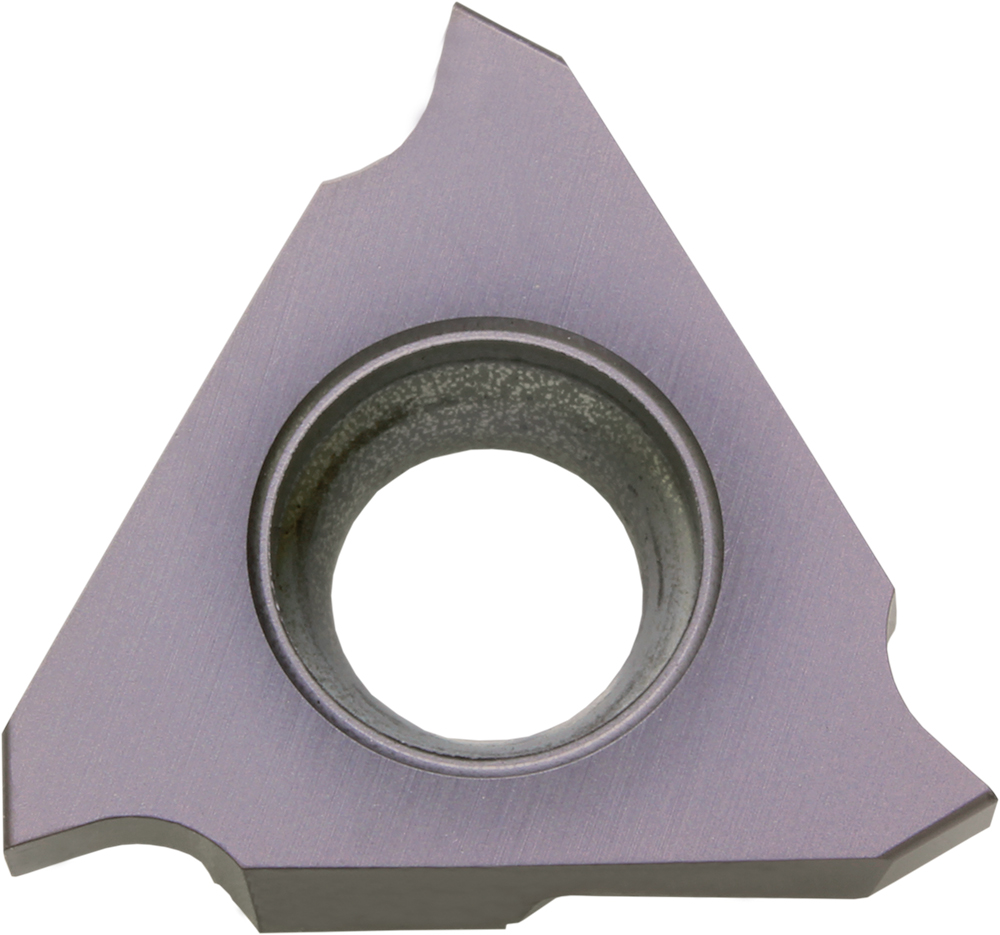

Kyocera GBA 32L145020 PR1625 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLL17131
$54.46
Kyocera GBA 32L145020 PR1625 Grade PVD Carbide, 1.45mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
GBA
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1625
Cutting Width
1.45 mm
Thickness (Metric)
3.18
Inscribed Circle (Metric)
9.53
Cutting Width (Decimal)
0.06
Style
GBA
Application
External Grooving
Thickness (Fractional)
1/8
Insert Holding Method
Screw or Clamp
Size
32
Old Material Number
8864367
ANSI Part Number
GBA32L145020PR1625
ISO Part Number
GBA32L145-020
Rake
Positive
Number of Cutting Edges
3
Hand of Holder
Left
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.45
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.45
Max Depth of Cut (Decimal)
0.10
Max Depth of Cut (Metric)
2.50
Inscribed Circle (Fractional)
3/8
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBA_Grooving.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
