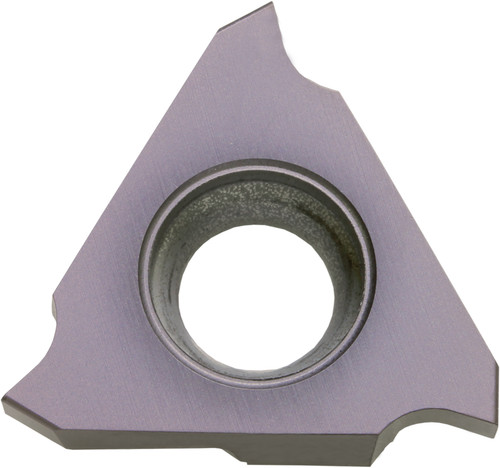

Kyocera GBA 43R125010 PR1215 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH17200
$55.85
Kyocera GBA 43R125010 PR1215 Grade PVD Carbide, 1.25mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
GBA
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.10
Grade
PR1215
Cutting Width
1.25 mm
Thickness (Metric)
4.76
Inscribed Circle (Metric)
12.70
Cutting Width (Decimal)
0.05
Style
GBA
Application
External Grooving
Thickness (Fractional)
3/16
Insert Holding Method
Screw or Clamp
Size
43
Old Material Number
8833836
ANSI Part Number
GBA43R125010PR1215
ISO Part Number
GBA43R125-010
Rake
Positive
Number of Cutting Edges
3
Hand of Holder
Right
Cutting Range
Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.05
Cutting Width Minimum (Metric)
1.25
Cutting Width Maximum (Decimal)
0.05
Cutting Width Maximum (Metric)
1.25
Max Depth of Cut (Decimal)
0.08
Max Depth of Cut (Metric)
2
Inscribed Circle (Fractional)
1/2
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBA_Grooving.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GBA 43R125010 PR1215 Grade PVD Carbide, Indexable Grooving Insert
$55.85
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
