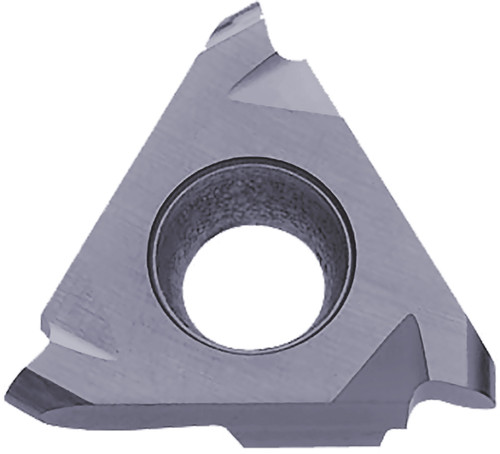

Kyocera GBA 43R150075R PR1215 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH17407
$69.65
Kyocera GBA 43R150075R PR1215 Grade PVD Carbide, 1.50mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
GBA
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.75
Grade
PR1215
Cutting Width
1.50 mm
Thickness (Metric)
4.76
Inscribed Circle (Metric)
12.70
Cutting Width (Decimal)
0.06
Style
GBA
Application
External Grooving
Chip Breaker Type
R
Thickness (Fractional)
3/16
Insert Holding Method
Screw or Clamp
Size
43
Old Material Number
8833842
ANSI Part Number
GBA43R150075RPR1215
ISO Part Number
GBA43R150-075R
Rake
Positive
Number of Cutting Edges
3
Hand of Holder
Right
Cutting Range
Medium
Full Radius
Yes
Usage Classification
Continuous
Corner Radius (Decimal)
0.03
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Max Depth of Cut (Decimal)
0.14
Max Depth of Cut (Metric)
3.50
Inscribed Circle (Fractional)
1/2
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBA_Grooving.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GBA 43R150075R PR1215 Grade PVD Carbide, Indexable Grooving Insert
