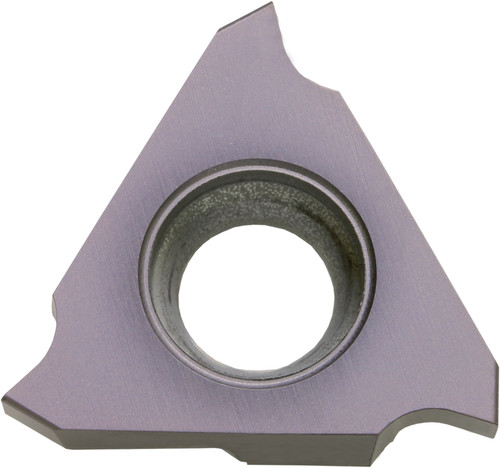

Kyocera Grooving Insert GBA43R250030 PR1625: TLL17262
SKU: KYP-TLL17262
Kyocera Grooving Insert GBA43R250030 PV7040, manufacturer part number TJB17262.
Specifications: IC Size: 12.70 mm (1/2 in); Insert Thickness: 4.76 mm (3/16 in); Corner Radius: 0.30 mm (0.0120 in); Cutting Width: 2.50 mm (0.0984 in); Insert Holding Method: Screw or Clamp; Old Material Number: 8836751; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Full Radius: No; Usage Classification: Continuous; Cutting Width Minimum: 2.50 mm (0.0984 in); Cutting Width Maximum: 2.50 mm (0.0984 in); Maximum Depth of Cut: 4.00 mm (0.1575 in); Insert Size: 43; Insert Style: GBA; Hand Direction: Right; ANSI Designation: GBA43R250030PV7040; ISO Designation: GBA43R250-030; Machining Operations: External Grooving; Insert Grade: PV7040; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: PVD.
Material: Cermet. Coating/Finish: TiC/TiN (MEGACOAT). Series: GBA. Unit of measure: Metric.
