Primary Workpiece Material
(K) Gray Cast Iron|(N) Non-Ferrous Materials|(S) Heat-Resistant Alloy
Inscribed Circle (Metric)
9.53
Cutting Width (Decimal)
0.02
Application
External Grooving
Thickness (Fractional)
1/8
Insert Holding Method
Screw
Old Material Number
8867447

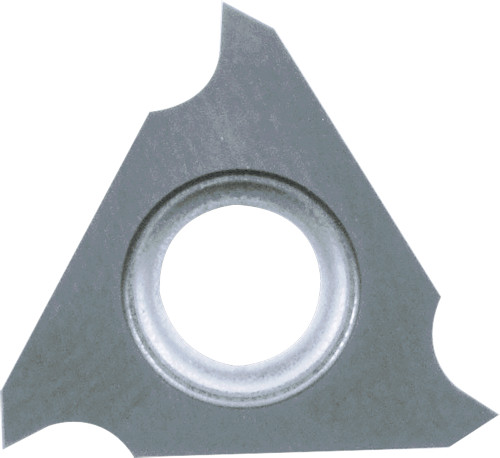

ANSI Part Number
GBF32L043000FGW15
ISO Part Number
GBF32L043-000F
Number of Cutting Edges
3
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.02
Cutting Width Minimum (Metric)
0.43
Cutting Width Maximum (Decimal)
0.02
Cutting Width Maximum (Metric)
0.43
Max Depth of Cut (Decimal)
0.04
Max Depth of Cut (Metric)
1
Inscribed Circle (Fractional)
3/8
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
