Kyocera Grooving Insert GBF32R150005 PR1215: TKH19858
SKU: KYP-TKH19858

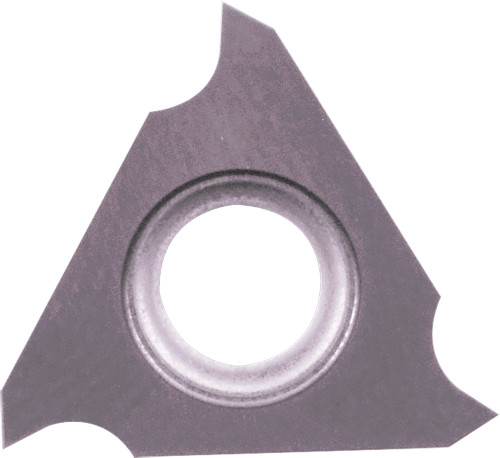

Kyocera Grooving Insert GBF32L125010 PR1215, manufacturer part number TKH18780.
Specifications: IC Size: 9.525 mm (3/8 in); Insert Thickness: 3.18 mm (1/8 in); Corner Radius: 0.10 mm (0.0040 in); Cutting Width: 1.25 mm (0.0492 in); Insert Holding Method: Screw; Old Material Number: 8847310; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Full Radius: No; Usage Classification: Continuous; Cutting Width Minimum: 1.25 mm (0.0492 in); Cutting Width Maximum: 1.25 mm (0.0492 in); Maximum Depth of Cut: 2.00 mm (0.0787 in); Insert Size: 32; Insert Style: GBF; Hand Direction: Left; ANSI Designation: GBF32L125010PR1215; ISO Designation: GBF32L125-010; Machining Operations: External Grooving; Insert Grade: PR1215; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.
Material: Carbide. Coating/Finish: MEGACOAT. Series: GBF. Unit of measure: Metric.
