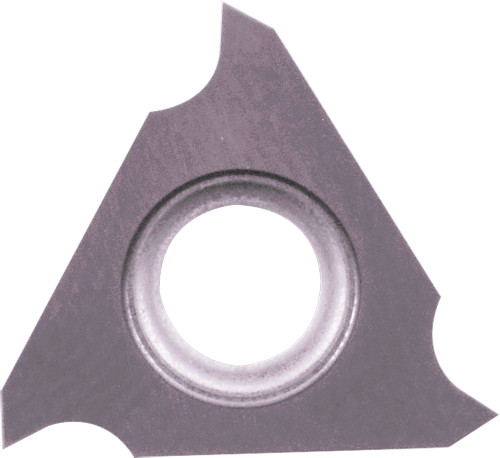

Kyocera Grooving Insert GBF32L140000F PR1535: TLC19931

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC19931
$51.90

Kyocera Grooving Insert GBF32L140000F PR1535, manufacturer part number TLC19931.

Specifications: IC Size: 9.525 mm (3/8 in); Insert Thickness: 3.18 mm (1/8 in); Corner Radius: 0.00 mm (0.0000 in); Cutting Width: 1.40 mm (0.0551 in); Insert Holding Method: Screw; Old Material Number: 8867491; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium-Roughing; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 1.40 mm (0.0551 in); Cutting Width Maximum: 1.40 mm (0.0551 in); Maximum Depth of Cut: 2.70 mm (0.1063 in); Insert Size: 140; Insert Style: GBF; Hand Direction: Left; ANSI Designation: GBF32L140000FPR1535; Chip Breaker Type: F; ISO Designation: GBF32L140-000F; Machining Operations: External Grooving; Insert Grade: PR1535; Workpiece Material: High-Temp Alloy, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: GBF. Unit of measure: Metric.

Specifications

Series
GBF
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT NANO
Corner Radius (Decimal)
0.0000
Insert Shape
Triangle
Cutting Width (Metric)
1.40
ANSI Designation
GBF32L140000FPR1535
Corner Radius (Metric)
0.00
Cutting Width (Decimal)
0.0551
Insert Style
GBF
ISO Designation
GBF32L140-000F
Chip Breaker Type
F
IC Size (Fractional)
3/8
Insert Holding Method
Screw
Insert Size
140
Old Material Number
8867491
IC Size (Metric)
9.525
Insert Thickness (Fractional)
1/8
Rake
Positive
Number of Cutting Edges
3
Hand Direction
Left
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous to Light Interruption
Cutting Width Minimum (Decimal)
0.0551
Cutting Width Minimum (Metric)
1.40
Cutting Width Maximum (Decimal)
0.0551
Cutting Width Maximum (Metric)
1.40
Maximum Depth of Cut (Decimal)
0.1063
Maximum Depth of Cut (Metric)
2.70
Insert Thickness (Metric)
3.18
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
Coating Process
PVD
Insert Grade
PR1535
Machining Operations
External Grooving
Workpiece Material
High-Temp Alloy, Stainless Steel
Kyocera Grooving Insert GBF32L140000F PR1535: TLC19931
$51.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
