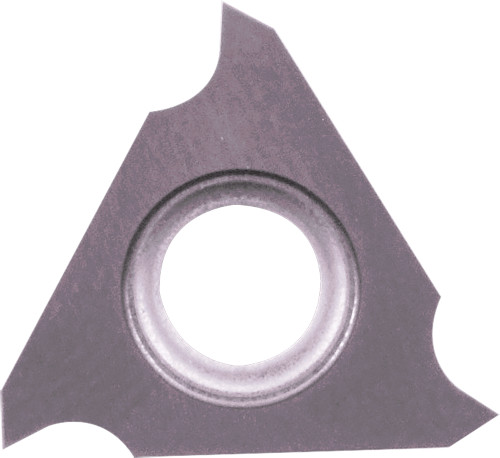

Kyocera Grooving Insert GBF32L150005 PR1215: TKH19859
SKU: KYP-TKH19859
Kyocera Grooving Insert GBF32L150005 PR1535, manufacturer part number TLC19859.
Specifications: IC Size: 9.525 mm (3/8 in); Insert Thickness: 3.18 mm (1/8 in); Corner Radius: 0.05 mm (0.0020 in); Cutting Width: 1.50 mm (0.0591 in); Insert Holding Method: Screw; Old Material Number: 8867506; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium-Roughing; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 1.50 mm (0.0591 in); Cutting Width Maximum: 1.50 mm (0.0591 in); Maximum Depth of Cut: 2.70 mm (0.1063 in); Insert Size: 150; Insert Style: GBF; Hand Direction: Left; ANSI Designation: GBF32L150005PR1535; ISO Designation: GBF32L150-005; Machining Operations: External Grooving; Insert Grade: PR1535; Workpiece Material: High-Temp Alloy, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.
Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: GBF. Unit of measure: Metric.
