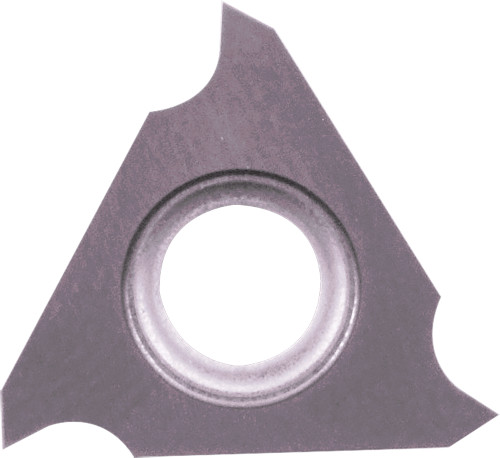

Kyocera Grooving Insert GBF32L170000F PR1215: TKH19939

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH19939
$51.90

Kyocera GBF grooving insert for steel, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, medium-roughing cutting range, screw insert holding, left hand. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKH19939.

Specifications

Series
GBF
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
Corner Radius (Decimal)
0.0000
Insert Shape
Triangle
Cutting Width (Metric)
1.70
ANSI Designation
GBF32L170000FPR1215
Corner Radius (Metric)
0.00
Cutting Width (Decimal)
0.0669
Insert Style
GBF
ISO Designation
GBF32L170-000F
Chip Breaker Type
F
IC Size (Fractional)
3/8
Insert Holding Method
Screw
Insert Size
170
Secondary Workpiece Material
Stainless Steel
IC Size (Metric)
9.525
Insert Thickness (Fractional)
1/8
Rake
Positive
Number of Cutting Edges
3
Hand Direction
Left
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous to Light Interruption
Cutting Width Minimum (Decimal)
0.0669
Cutting Width Minimum (Metric)
1.70
Cutting Width Maximum (Decimal)
0.0669
Cutting Width Maximum (Metric)
1.70
Maximum Depth of Cut (Decimal)
0.1181
Maximum Depth of Cut (Metric)
3.00
Insert Thickness (Metric)
3.18
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
Coating Process
PVD
Insert Grade
PR1215
Machining Operations
External Grooving
Workpiece Material
Steel
Kyocera Grooving Insert GBF32L170000F PR1215: TKH19939
$51.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
