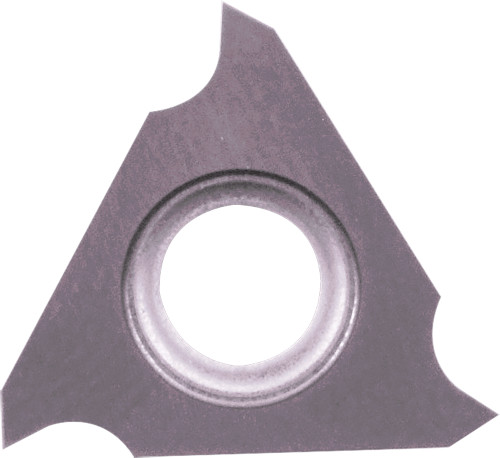

Kyocera Grooving Insert GBF32L175005 PR1215: TKH19865

Kyocera Grooving Insert GBF32L175005 PR1215, manufacturer part number TKH19865.

Specifications: IC Size: 9.525 mm (3/8 in); Insert Thickness: 3.18 mm (1/8 in); Corner Radius: 0.05 mm (0.0020 in); Cutting Width: 1.75 mm (0.0689 in); Insert Holding Method: Screw; Old Material Number: 8867523; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium-Roughing; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 1.75 mm (0.0689 in); Cutting Width Maximum: 1.75 mm (0.0689 in); Maximum Depth of Cut: 3.00 mm (0.1181 in); Insert Size: 175; Insert Style: GBF; Hand Direction: Left; ANSI Designation: GBF32L175005PR1215; ISO Designation: GBF32L175-005; Machining Operations: External Grooving; Insert Grade: PR1215; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: GBF. Unit of measure: Metric.
