Primary Workpiece Material
(K) Gray Cast Iron|(N) Non-Ferrous Materials|(S) Heat-Resistant Alloy
Corner Radius (Metric)
0.10
Inscribed Circle (Metric)
9.53
Cutting Width (Decimal)
0.04
Application
External Grooving
Thickness (Fractional)
1/8
Insert Holding Method
Screw
Old Material Number
8867901
ANSI Part Number

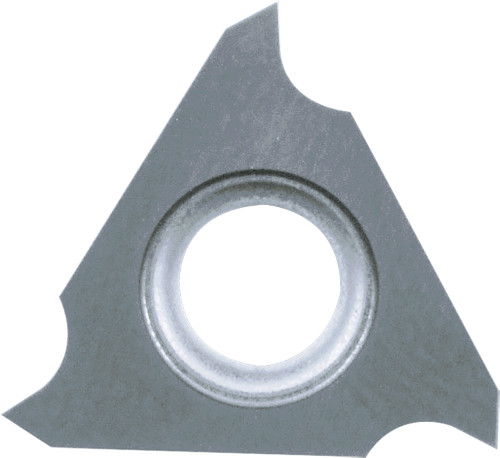

GBF32R095010GW15
ISO Part Number
GBF32R095-010
Number of Cutting Edges
3
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.04
Cutting Width Minimum (Metric)
0.95
Cutting Width Maximum (Decimal)
0.04
Cutting Width Maximum (Metric)
0.95
Max Depth of Cut (Decimal)
0.08
Max Depth of Cut (Metric)
2
Inscribed Circle (Fractional)
3/8
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
