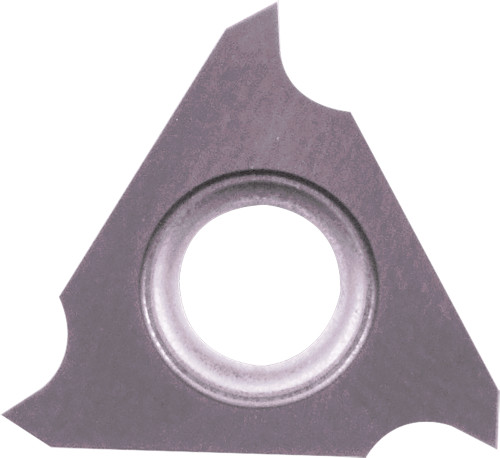

Kyocera Grooving Insert GBF32R125000F PR1535: TLC19926

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC19926
$51.90

Kyocera GBF grooving insert for high-temp alloys, 3/8 in (9.525 mm) IC, triangle shape, positive rake, 3 cutting edges, medium-roughing cutting range, screw insert holding, right hand. Carbide, MEGACOAT NANO (PVD) coating. Manufacturer part number TLC19926.

Specifications

Series
GBF
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT NANO
Corner Radius (Decimal)
0.0000
Insert Shape
Triangle
Cutting Width (Metric)
1.25
ANSI Designation
GBF32R125000FPR1535
Corner Radius (Metric)
0.00
Cutting Width (Decimal)
0.0492
Insert Style
GBF
ISO Designation
GBF32R125-000F
Chip Breaker Type
F
IC Size (Fractional)
3/8
Insert Holding Method
Screw
Insert Size
125
Secondary Workpiece Material
Stainless Steel
IC Size (Metric)
9.525
Insert Thickness (Fractional)
1/8
Rake
Positive
Number of Cutting Edges
3
Hand Direction
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous to Light Interruption
Cutting Width Minimum (Decimal)
0.0492
Cutting Width Minimum (Metric)
1.25
Cutting Width Maximum (Decimal)
0.0492
Cutting Width Maximum (Metric)
1.25
Maximum Depth of Cut (Decimal)
0.0787
Maximum Depth of Cut (Metric)
2.00
Insert Thickness (Metric)
3.18
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
Coating Process
PVD
Insert Grade
PR1535
Machining Operations
External Grooving
Workpiece Material
High-Temp Alloy
Kyocera Grooving Insert GBF32R125000F PR1535: TLC19926
$51.90
Add to Your List
Request a Quote
