Kyocera Grooving Insert GBF32R150000F PR1535: TLC19934
SKU: KYP-TLC19934

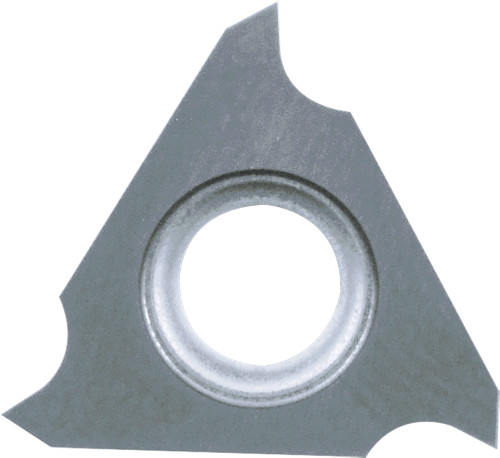

Kyocera Grooving Insert GBF32R150000F GW15, manufacturer part number TWG19934.
Specifications: IC Size: 9.525 mm (3/8 in); Insert Thickness: 3.18 mm (1/8 in); Corner Radius: 0.00 mm (0.0000 in); Cutting Width: 1.50 mm (0.0591 in); Insert Holding Method: Screw; Old Material Number: 8867603; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium-Roughing; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 1.50 mm (0.0591 in); Cutting Width Maximum: 1.50 mm (0.0591 in); Maximum Depth of Cut: 2.70 mm (0.1063 in); Insert Size: 150; Insert Style: GBF; Hand Direction: Right; ANSI Designation: GBF32R150000FGW15; Chip Breaker Type: F; ISO Designation: GBF32R150-000F; Machining Operations: External Grooving; Insert Grade: GW15; Workpiece Material: Cast Iron, Non-Ferrous, High-Temp Alloy; Insert Shape: Triangle.
Material: Carbide. Coating/Finish: Uncoated. Series: GBF. Unit of measure: Metric.
