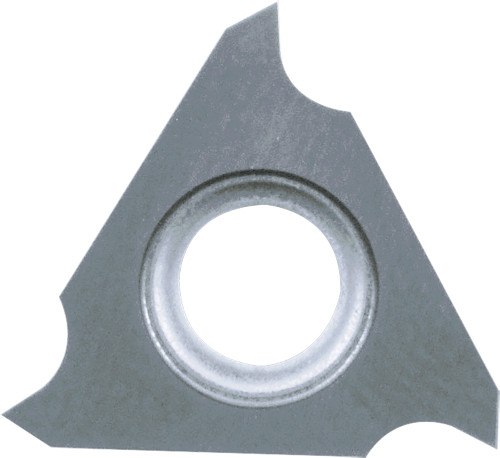

Kyocera GBF 32R300010 GW15 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG18845
$48.66
Kyocera GBF 32R300010 GW15 Grade Uncoated Carbide, 3.00mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
GBF
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.10
Grade
GW15
Cutting Width
3 mm
Thickness (Metric)
3.18
Inscribed Circle (Metric)
9.53
Cutting Width (Decimal)
0.12
Style
GBF
Application
External Grooving
Thickness (Fractional)
1/8
Insert Holding Method
Screw
Size
32
Old Material Number
8848195
ANSI Part Number
GBF32R300010GW15
ISO Part Number
GBF32R300-010
Rake
Positive
Number of Cutting Edges
3
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
0.12
Max Depth of Cut (Metric)
3
Inscribed Circle (Fractional)
3/8
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GBF 32R300010 GW15 Grade Uncoated Carbide, Indexable Grooving Insert
$48.66
