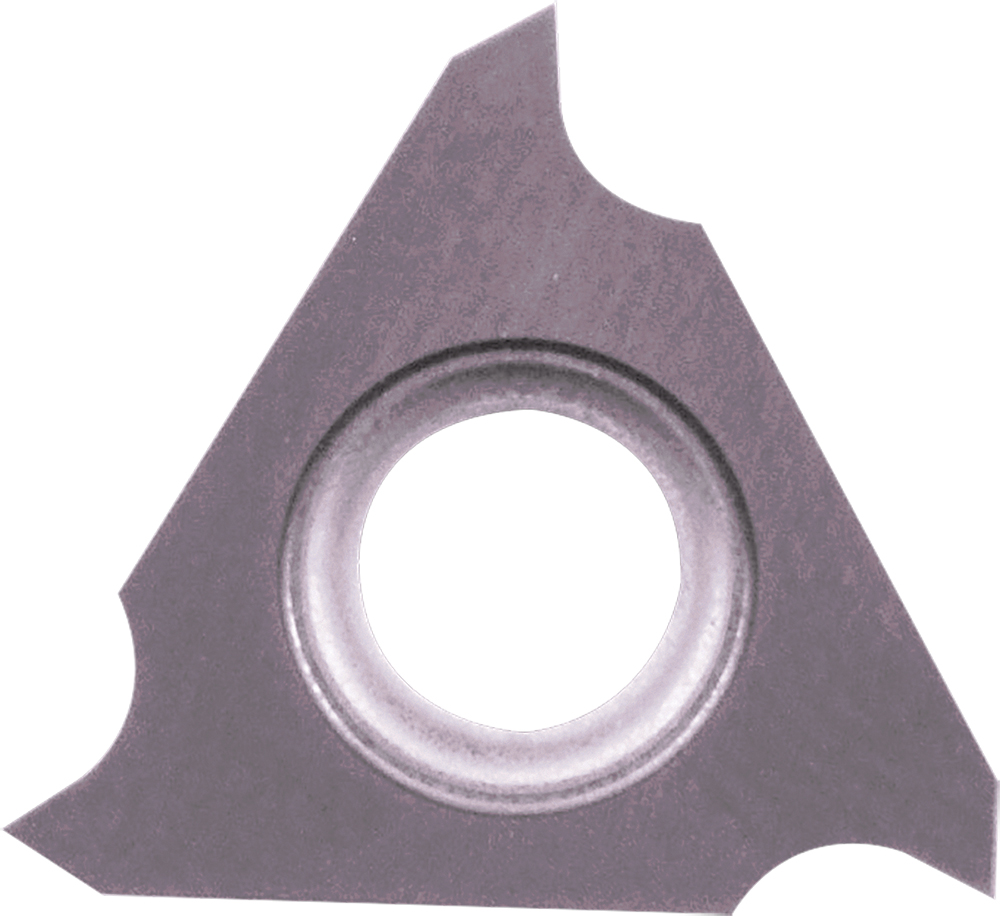

Kyocera GBF32R075010 PR1215 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH40001
$51.90
Kyocera GBF32R075010 PR1215 Grade PVD Carbide, 0.75mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel and (M) Stainless Steel Material Applications

Specifications

Series
GBF
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.10
Grade
PR1215
Cutting Width
0.75 mm
Thickness (Metric)
3.18
Inscribed Circle (Metric)
9.53
Cutting Width (Decimal)
0.03
Style
GBF
Application
External Grooving
Thickness (Fractional)
1/8
Insert Holding Method
Screw
Size
075
Old Material Number
8867873
ANSI Part Number
GBF32R075010PR1215
ISO Part Number
GBF32R075-010
Rake
Positive
Number of Cutting Edges
3
Hand of Holder
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.03
Cutting Width Minimum (Metric)
0.75
Cutting Width Maximum (Decimal)
0.03
Cutting Width Maximum (Metric)
0.75
Max Depth of Cut (Decimal)
0.08
Max Depth of Cut (Metric)
2
Inscribed Circle (Fractional)
3/8
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/GBF_Grooving_for_Small_Parts.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCTM-Series.pdf
Kyocera GBF32R075010 PR1215 Grade PVD Carbide, Indexable Grooving Insert
$51.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
