Kyocera Grooving Insert GC08R100050R PR1725: TLM40275
SKU: KYP-TLM40275

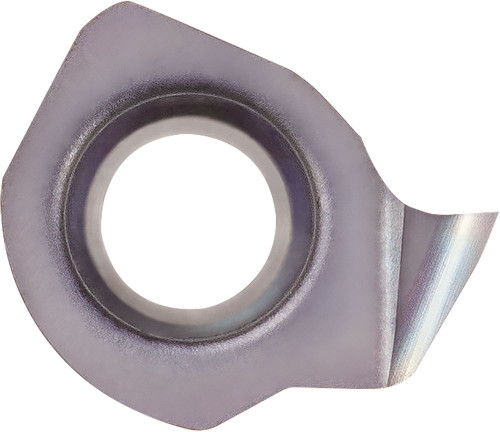

Kyocera Grooving Insert GC08R100050R PR1535, manufacturer part number TLC40116.
Specifications: Insert Thickness: 3.50 mm (0.1380 in); Corner Radius: 0.50 mm (0.0200 in); Cutting Width: 1.00 mm (0.0394 in); Insert Holding Method: Screw or Clamp; Insert Length: 7.70 mm (0.3032 in); Old Material Number: 8866895; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing-Medium; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 1.00 mm (0.0394 in); Cutting Width Maximum: 1.00 mm (0.0394 in); Maximum Depth of Cut: 1.50 mm (0.0591 in); Insert Shape: Irregular; Insert Size: 08; Insert Style: GC; Hand Direction: Right; ANSI Designation: GC08R100050RPR1535; Chip Breaker Type: R; ISO Designation: GC08R100-050R; Machining Operations: Internal Grooving, Small Parts Machining; Insert Grade: PR1535; Workpiece Material: High-Temp Alloy, Stainless Steel; Coating Process: PVD.
Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: SIGC. Unit of measure: Metric.
