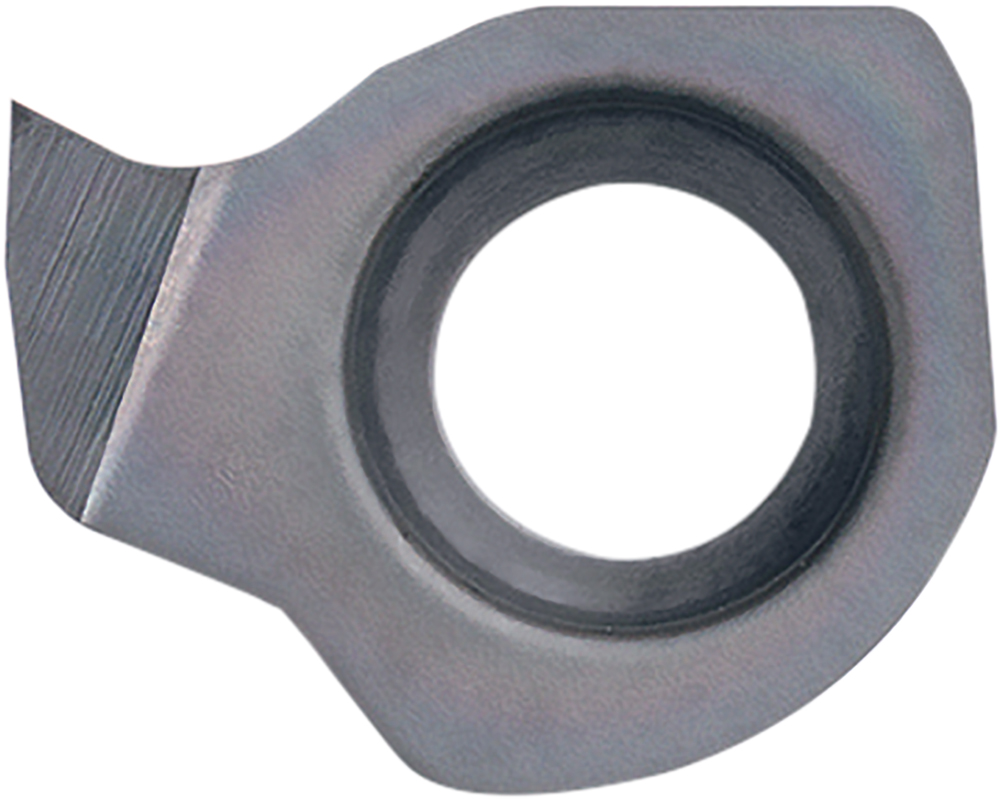

Kyocera GC 12R150010 PR1535 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC19978
$46.43
Kyocera GC 12R150010 PR1535 Grade PVD Carbide, 1.50mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel

Specifications

Series
SIGC
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Corner Radius (Metric)
0.10
Grade
PR1535
Cutting Width
1.50 mm
Thickness (Metric)
5.40
Cutting Width (Decimal)
0.06
Style
GC
Application
Internal Grooving|Small Parts Machining
Thickness (Decimal)
0.21
Insert Holding Method
Screw or Clamp
Insert Length (Decimal)
0.46
Insert Length (Metric)
11.60
Size
12
Old Material Number
8863933
ANSI Part Number
GC12R150010PR1535
ISO Part Number
GC12R150-010
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Max Depth of Cut (Decimal)
0.09
Max Depth of Cut (Metric)
2.20
Pack quantity
5
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/SIGC_Small_Internal_Grooving.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
