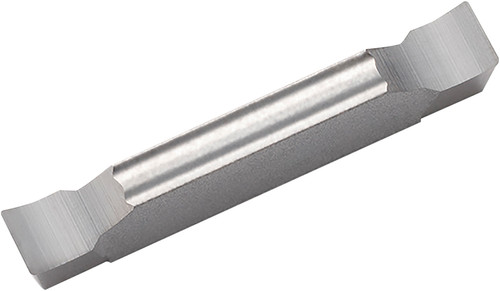

Kyocera GDFG 6020N040GS GW15 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG40025
$61.23
Kyocera GDFG 6020N040GS GW15 Grade Uncoated Carbide, 6.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Grade
GW15
Cutting Width
6 mm
Thickness (Metric)
4.50
Cutting Width (Decimal)
0.24
Style
GDFG
Application
Face Grooving|Traversing
Chip Breaker Type
GS
Thickness (Decimal)
0.18
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
6020
Old Material Number
8867867
ANSI Part Number
GDFG6020N040GSGW15
ISO Part Number
GDFG6020N-040GS
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.24
Cutting Width Minimum (Metric)
6
Cutting Width Maximum (Decimal)
0.24
Cutting Width Maximum (Metric)
6
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
