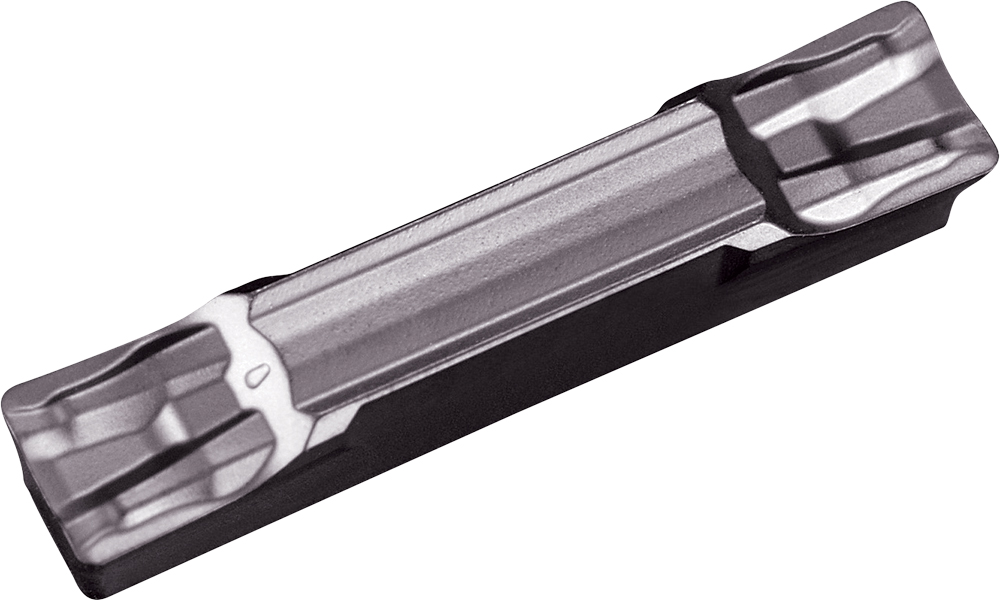

Kyocera GDFMS 6020N040DM PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE10848
$38.65
Kyocera GDFMS 6020N040DM PR1225 Grade PVD Carbide, 6.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Grade
PR1225
Cutting Width
6 mm
Thickness (Metric)
4.50
Cutting Width (Decimal)
0.24
Style
GDFMS
Application
Deep Face Grooving|Face Grooving|Traversing
Chip Breaker Type
DM
Thickness (Decimal)
0.18
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
6020
Old Material Number
8834526
ANSI Part Number
GDFMS6020N040DMPR1225
ISO Part Number
GDFMS6020N-040DM
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Neutral
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.24
Cutting Width Minimum (Metric)
6
Cutting Width Maximum (Decimal)
0.24
Cutting Width Maximum (Metric)
6
Max Depth of Cut (Decimal)
1.26
Max Depth of Cut (Metric)
32
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
