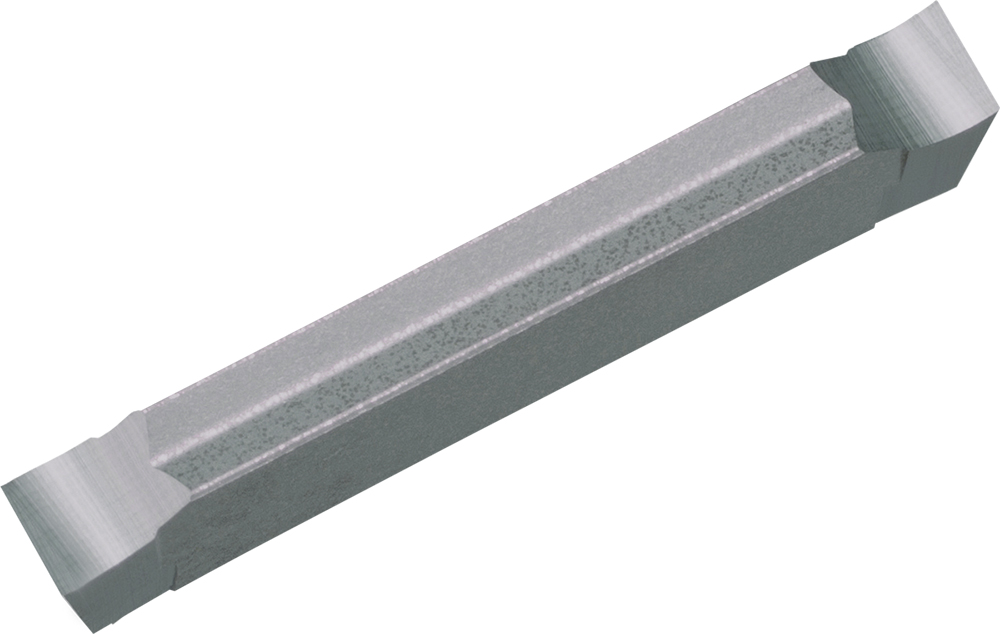

Kyocera GDG 2020N005PG GW15 Grade Uncoated Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWF10718
$47.53
Kyocera GDG 2020N005PG GW15 Grade Uncoated Carbide, 2.00mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
KGD
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Width
2 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Clamp
Old Material Number
8838137
ANSI Part Number
GDG2020N005PGGW15
ISO Part Number
GDG2020N-005PG
Rake
Positive
Material Group / Grade
GW15
Tool Style
GDG
Cutting Width (Decimal)
0.08
Cutting Width (Metric)
2
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Insert Size
2020
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Corner Radius (Decimal)
0.002
Thickness (Decimal)
0.17
Thickness (Metric)
4.30
Chipbreaker
PG
Coating Process
Uncoated
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
