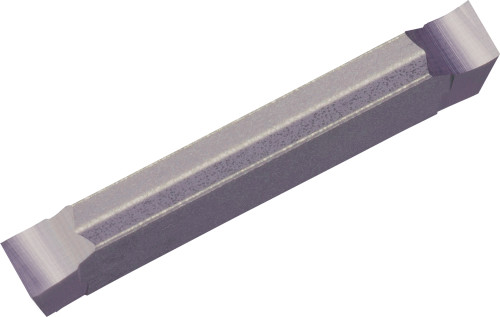

Kyocera GDG 2520R005PG15D PR1225 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE10722
$55.59
Kyocera GDG 2520R005PG15D PR1225 Grade PVD Carbide, 2.50mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
2.50 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Clamp
Old Material Number
8838831
ANSI Part Number
GDG2520R005PG15DPR1225
ISO Part Number
GDG2520R-005PG-15D
Rake
Positive
Material Group / Grade
PR1225
Tool Style
GDG
Cutting Width (Decimal)
0.10
Cutting Width (Metric)
2.50
Cutting Width Minimum (Decimal)
0.10
Cutting Width Minimum (Metric)
2.50
Cutting Width Maximum (Decimal)
0.10
Cutting Width Maximum (Metric)
2.50
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Insert Size
2520
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Corner Radius (Decimal)
0.002
Thickness (Decimal)
0.17
Thickness (Metric)
4.30
Chipbreaker
PG
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
