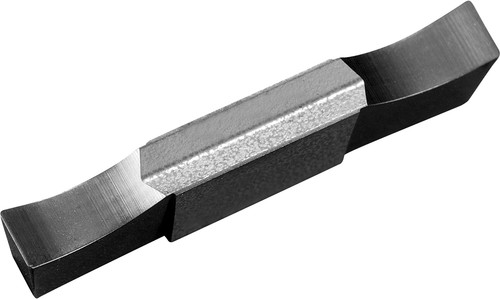

Kyocera GDG 3015N020GS GW15 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG40010
$49.03
Kyocera GDG 3015N020GS GW15 Grade Uncoated Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Materials and (S) Heat-Resistant Alloy

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.15
Grade
GW15
Cutting Width
3 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.12
Style
GDG
Application
External Grooving
Chip Breaker Type
GS
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
3015
Old Material Number
8866392
ANSI Part Number
GDG3015N020GSGW15
ISO Part Number
GDG3015N-020GS
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
1
Max Depth of Cut (Metric)
25.50
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GDG 3015N020GS GW15 Grade Uncoated Carbide, Indexable Grooving Insert
$49.03
Add to Your List
Request a Quote
