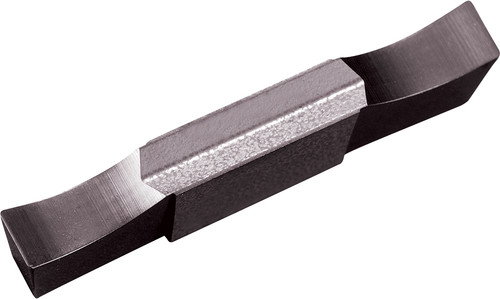

Kyocera GDG 3020N020GS PR1215 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH10723
$58.99
Kyocera GDG 3020N020GS PR1215 Grade PVD Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1215
Cutting Width
3 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.12
Style
GDG
Application
External Grooving
Chip Breaker Type
GS
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
3020
Old Material Number
8834531
ANSI Part Number
GDG3020N020GSPR1215
ISO Part Number
GDG3020N-020GS
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
1
Max Depth of Cut (Metric)
25.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
