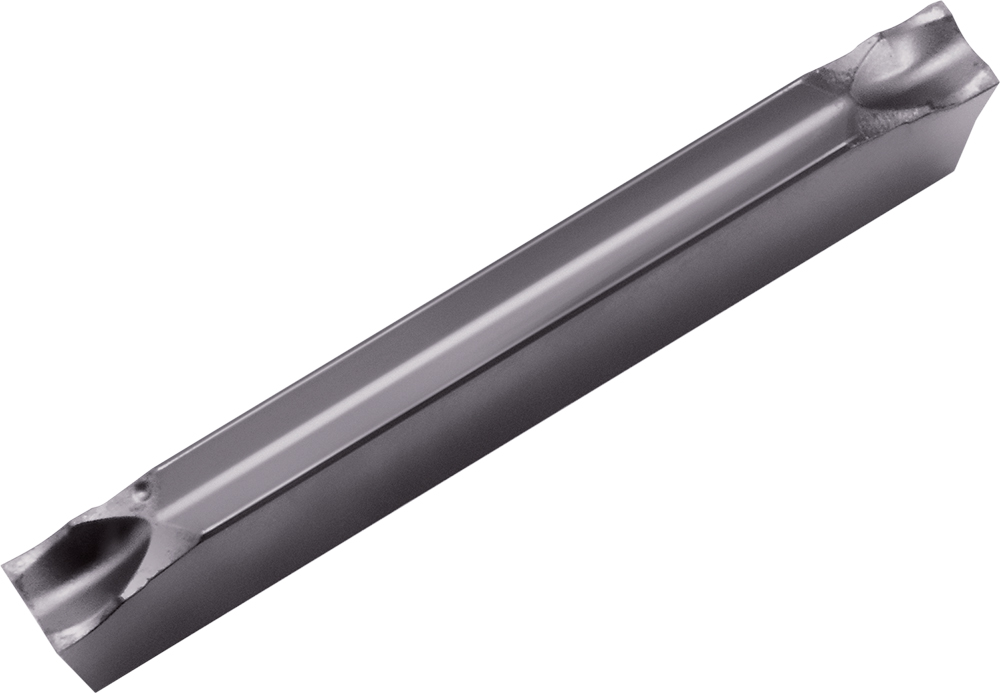

Kyocera GDM 1316N015PF PR1215 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH10415
$37.02
Kyocera GDM 1316N015PF PR1215 Grade PVD Carbide, 1.30mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
1.30 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Clamp
Old Material Number
8838400
ANSI Part Number
GDM1316N015PFPR1215
ISO Part Number
GDM1316N-015PF
Rake
Positive
Material Group / Grade
PR1215
Tool Style
GDM
Cutting Width (Decimal)
0.05
Cutting Width (Metric)
1.30
Cutting Width Minimum (Decimal)
0.05
Cutting Width Minimum (Metric)
1.30
Cutting Width Maximum (Decimal)
0.05
Cutting Width Maximum (Metric)
1.30
Corner Radius (Metric)
0.15
Number of Cutting Edges
2
Insert Size
1316
Insert Length (Decimal)
0.63
Insert Length (Metric)
16
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.15
Thickness (Metric)
3.70
Chipbreaker
PF
Coating Process
PVD
Cutting Range
Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GDM 1316N015PF PR1215 Grade PVD Carbide, Indexable Cut-Off Insert
$37.02
