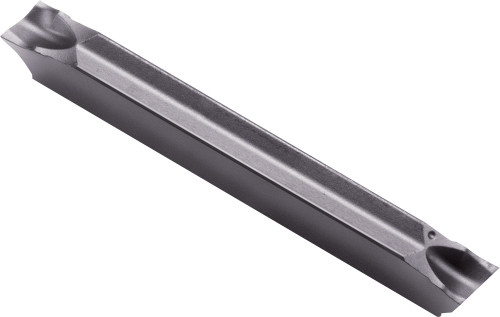

Kyocera GDM 1516L003PF15D PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC10423
$37.02
Kyocera GDM 1516L003PF15D PR1535 Grade PVD Carbide, 1.50mm Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Cutting Direction
Left
Material
Carbide
Primary Workpiece Material
(M) Stainless Steel
Cutting Width
1.50 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Clamp
Old Material Number
8842592
ANSI Part Number
GDM1516L003PF15DPR1535
ISO Part Number
GDM1516L-003PF-15D
Rake
Positive
Material Group / Grade
PR1535
Tool Style
GDM
Cutting Width (Decimal)
0.06
Cutting Width (Metric)
1.50
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Insert Size
1516
Insert Length (Decimal)
0.63
Insert Length (Metric)
16
Corner Radius (Decimal)
0.001
Thickness (Decimal)
0.15
Thickness (Metric)
3.70
Chipbreaker
PF
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
