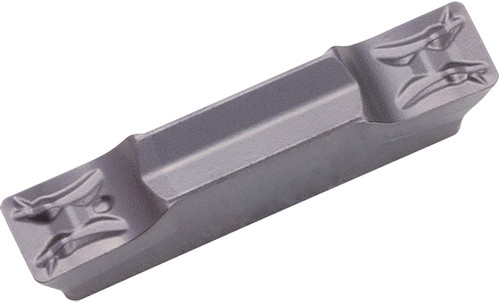

Kyocera GDM 2013N020GMI PR1215 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH10941
$37.02
Kyocera GDM 2013N020GMI PR1215 Grade PVD Carbide, 2.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1215
Cutting Width
2 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.08
Style
GDM
Application
Internal Grooving
Chip Breaker Type
GMI
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.53
Insert Length (Metric)
13.50
Size
2013
Old Material Number
8845653
ANSI Part Number
GDM2013N020GMIPR1215
ISO Part Number
GDM2013N-020GMI
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Max Depth of Cut (Decimal)
0.28
Max Depth of Cut (Metric)
7
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGDI_Internal_Grooving.pdf
