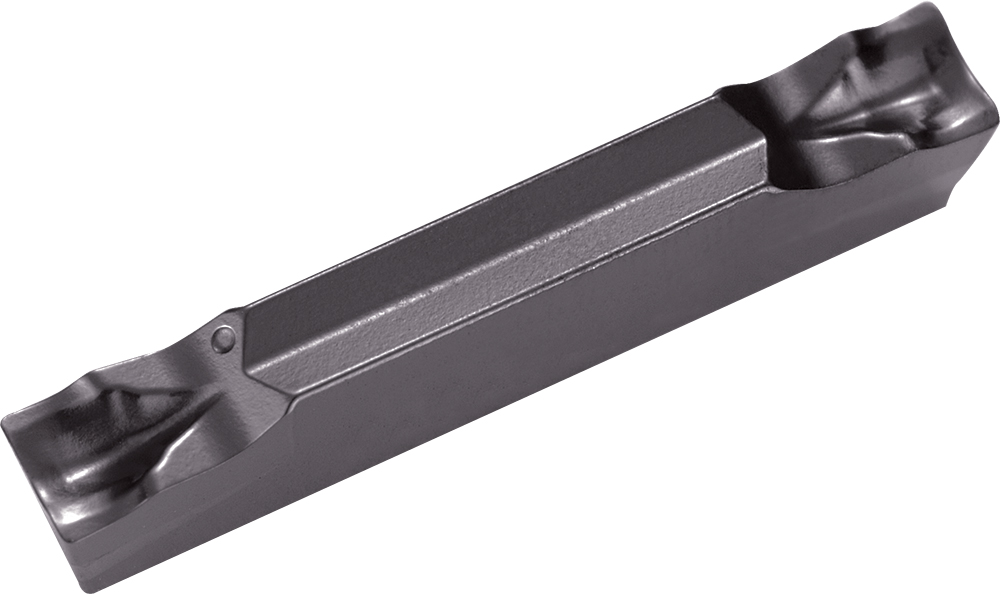

Kyocera GDM 2520N020PM PR1225 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE10523
$37.02
Kyocera GDM 2520N020PM PR1225 Grade PVD Carbide, 2.50mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
2.50 mm
Application
Cut-Off
Insert Holding Method
Clamp
Old Material Number
8834557
ANSI Part Number
GDM2520N020PMPR1225
ISO Part Number
GDM2520N-020PM
Rake
Positive
Material Group / Grade
PR1225
Tool Style
GDM
Cutting Width (Decimal)
0.10
Cutting Width (Metric)
2.50
Cutting Width Minimum (Decimal)
0.10
Cutting Width Minimum (Metric)
2.50
Cutting Width Maximum (Decimal)
0.10
Cutting Width Maximum (Metric)
2.50
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Size
2520
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.17
Thickness (Metric)
4.30
Chipbreaker
PM
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GDM 2520N020PM PR1225 Grade PVD Carbide, Indexable Cut-Off Insert
$37.02
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
