Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Cutting Width (Decimal)
0.16
Application
External Grooving|Traversing
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Old Material Number
8844902
ANSI Part Number

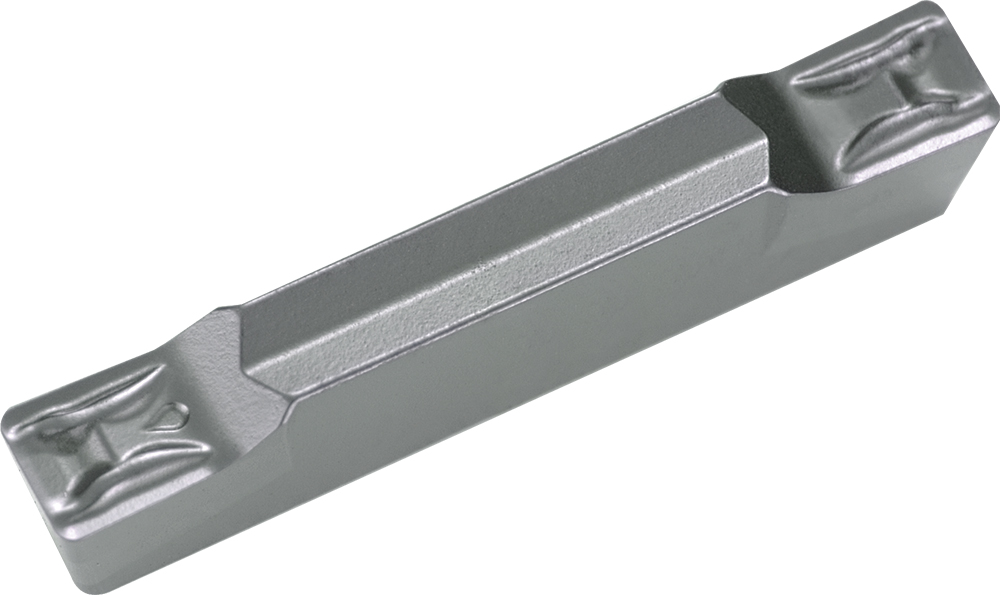

GDM4020N020GMTN620
ISO Part Number
GDM4020N-020GM
Number of Cutting Edges
2
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.16
Cutting Width Minimum (Metric)
4
Cutting Width Maximum (Decimal)
0.16
Cutting Width Maximum (Metric)
4
Max Depth of Cut (Decimal)
1
Max Depth of Cut (Metric)
25.50
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
