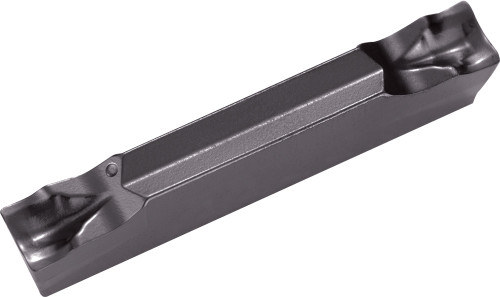

Kyocera Cut-Off Insert GDM4020N030PM PR1535: TLC10533

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC10533
$44.90

Kyocera KGD cut-off insert for stainless steel, irregular shape, positive rake, 2 cutting edges, medium-roughing cutting range, clamp insert holding, neutral hand. Carbide, MEGACOAT NANO (PVD) coating. Manufacturer part number TLC10533.

Specifications

Series
KGD
Unit of Measure
Metric
Hand Direction
Neutral
Material
Carbide
ISO Designation
GDM4020N-030PM
ANSI Designation
GDM4020N030PMPR1535
Insert Thickness (Metric)
4.30
Insert Holding Method
Clamp
Secondary Workpiece Material
Steel
Machining Operations
Cut-Off
Insert Grade
PR1535
Rake
Positive
Chip Breaker Type
PM
Insert Style
GDM
Cutting Width (Decimal)
0.1575
Cutting Width (Metric)
4.00
Cutting Width Minimum (Decimal)
0.1575
Cutting Width Minimum (Metric)
4.00
Cutting Width Maximum (Decimal)
0.1575
Cutting Width Maximum (Metric)
4.00
Corner Radius (Metric)
0.30
Number of Cutting Edges
2
Insert Size
4020
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Corner Radius (Decimal)
0.0120
Insert Shape
Irregular
Workpiece Material
Stainless Steel
Coating/Finish
MEGACOAT NANO
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous to Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Insert Thickness (Decimal)
0.1690
