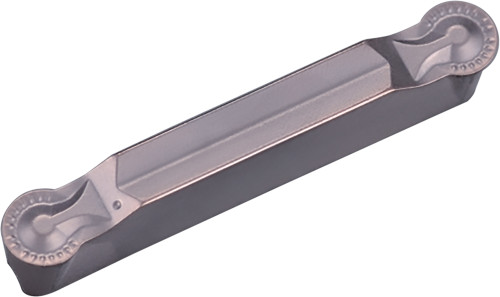

Kyocera GDM 5020N250RCM PR1215 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKH10754
$54.02
Kyocera GDM 5020N250RCM PR1215 Grade PVD Carbide, 5.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
2.50
Grade
PR1215
Cutting Width
5 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.20
Style
GDM
Application
Copying|Internal Grooving
Chip Breaker Type
CM
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
5020
Old Material Number
8834587
ANSI Part Number
GDM5020N250RCMPR1215
ISO Part Number
GDM5020N-250R-CM
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Medium
Full Radius
Yes
Usage Classification
Continuous
Corner Radius (Decimal)
0.10
Cutting Width Minimum (Decimal)
0.20
Cutting Width Minimum (Metric)
5
Cutting Width Maximum (Decimal)
0.20
Cutting Width Maximum (Metric)
5
Max Depth of Cut (Decimal)
0.43
Max Depth of Cut (Metric)
11
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
