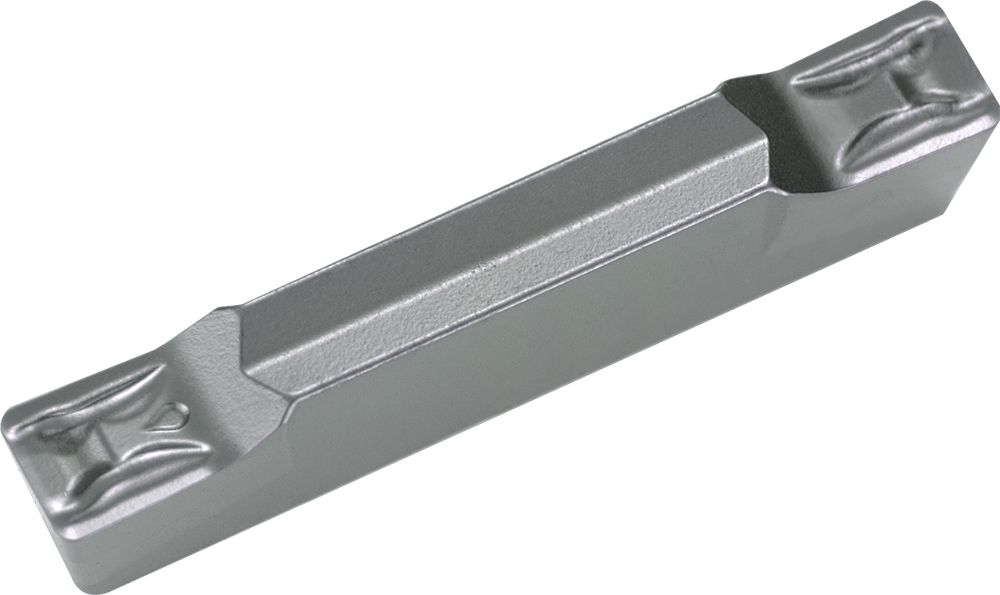

Kyocera GDM 6020N080GM TN90 Grade Uncoated Cermet, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSO10563
$37.02
Kyocera GDM 6020N080GM TN90 Grade Uncoated Cermet, 6.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.80
Corner Radius (Fractional)
1/32
Grade
TN90
Cutting Width
6 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.24
Style
GDM
Application
External Grooving|Traversing
Chip Breaker Type
GM
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
6020
Old Material Number
8834923
ANSI Part Number
GDM6020N080GMTN90
ISO Part Number
GDM6020N-080GM
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.24
Cutting Width Minimum (Metric)
6
Cutting Width Maximum (Decimal)
0.24
Cutting Width Maximum (Metric)
6
Max Depth of Cut (Decimal)
1.18
Max Depth of Cut (Metric)
30
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera GDM 6020N080GM TN90 Grade Uncoated Cermet, Indexable Grooving Insert
$37.02
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
