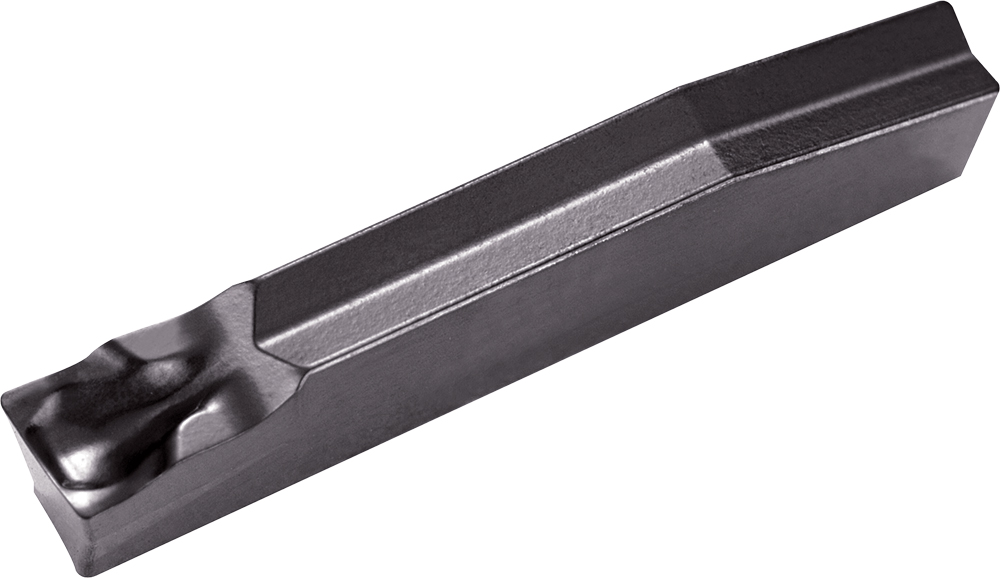

Kyocera GDMS 2020R020PM6D PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC10581
$29.63
Kyocera GDMS 2020R020PM6D PR1535 Grade PVD Carbide, 2.00mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(M) Stainless Steel
Cutting Width
2 mm
Application
Cut-Off
Insert Holding Method
Clamp
Old Material Number
8842621
ANSI Part Number
GDMS2020R020PM6DPR1535
ISO Part Number
GDMS2020R-020PM-6D
Rake
Positive
Material Group / Grade
PR1535
Tool Style
GDMS
Cutting Width (Decimal)
0.08
Cutting Width (Metric)
2
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Size
2020
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Corner Radius (Decimal)
0.01
Thickness (Decimal)
0.17
Thickness (Metric)
4.30
Chipbreaker
PM
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
