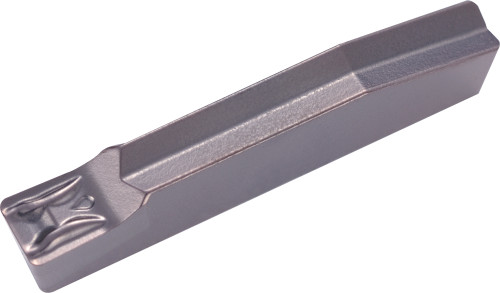

Kyocera Grooving Insert GDMS4020N040GM TN90: TSO10616
SKU: KYP-TSO10616
Kyocera Grooving Insert GDMS4020N040GM PR1225, manufacturer part number TKE10616.
Specifications: Insert Thickness: 4.30 mm (0.1690 in); Corner Radius: 0.40 mm (1/64 in); Cutting Width: 4.00 mm (0.1575 in); Insert Holding Method: Clamp; Insert Length: 20.00 mm (0.7874 in); Old Material Number: 8834618; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Medium-Roughing; Full Radius: No; Usage Classification: Continuous; Cutting Width Minimum: 4.00 mm (0.1575 in); Cutting Width Maximum: 4.00 mm (0.1575 in); Maximum Depth of Cut: 25.50 mm (1.0039 in); Insert Shape: Irregular; Insert Size: 4020; Insert Style: GDMS; Hand Direction: Neutral; ANSI Designation: GDMS4020N040GMPR1225; Chip Breaker Type: GM; ISO Designation: GDMS4020N-040GM; Machining Operations: External Grooving, Traversing; Insert Grade: PR1225; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.
Material: Carbide. Coating/Finish: MEGACOAT. Series: KGD. Unit of measure: Metric.
