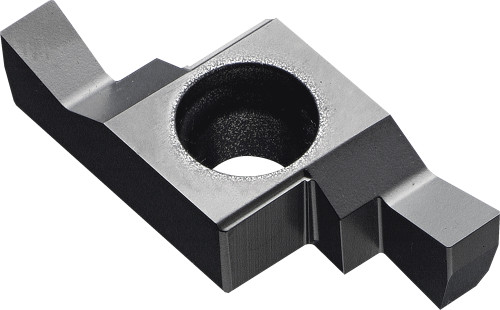

Kyocera GE L300020E TN6020 Grade Uncoated Cermet, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSQ17267
$55.95
Kyocera GE L300020E TN6020 Grade Uncoated Cermet, 3.00mm Groove Width, Left-Hand Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
TN6020
Cutting Width
3 mm
Thickness (Metric)
5.56
Cutting Width (Decimal)
0.12
Style
GE
Application
Internal Grooving
Thickness (Fractional)
7/32
Insert Holding Method
Screw
Insert Length (Decimal)
0.85
Insert Length (Metric)
21.66
Size
300020
Old Material Number
8825672
ANSI Part Number
GEL300020ETN6020
ISO Part Number
GEL300-020E
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Left
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
0.18
Max Depth of Cut (Metric)
4.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
