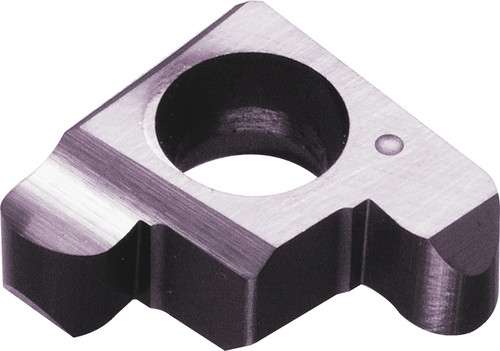

Kyocera GE R100050AR PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE16702
$69.31
Kyocera GE R100050AR PR1225 Grade PVD Carbide, 1.00mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.50
Grade
PR1225
Cutting Width
1 mm
Thickness (Metric)
2.58
Cutting Width (Decimal)
0.04
Style
GE
Application
Internal Grooving
Thickness (Decimal)
0.10
Insert Holding Method
Screw
Insert Length (Decimal)
0.26
Insert Length (Metric)
6.50
Size
100050
Old Material Number
8836795
ANSI Part Number
GER100050ARPR1225
ISO Part Number
GER100-050AR
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Medium-Roughing
Full Radius
Yes
Usage Classification
Continuous
Corner Radius (Decimal)
0.02
Cutting Width Minimum (Decimal)
0.04
Cutting Width Minimum (Metric)
1
Cutting Width Maximum (Decimal)
0.04
Cutting Width Maximum (Metric)
1
Max Depth of Cut (Decimal)
0.06
Max Depth of Cut (Metric)
1.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
