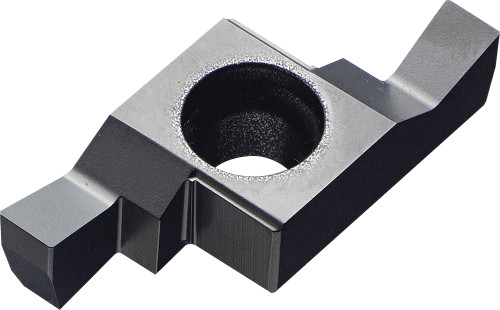

Kyocera GE R150010E GW15 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG17206
$69.31
Kyocera GE R150010E GW15 Grade Uncoated Carbide, 1.50mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.10
Grade
GW15
Cutting Width
1.50 mm
Thickness (Metric)
5.56
Cutting Width (Decimal)
0.06
Style
GE
Application
Internal Grooving
Thickness (Fractional)
7/32
Insert Holding Method
Screw
Insert Length (Decimal)
0.85
Insert Length (Metric)
21.66
Size
150010
Old Material Number
8825731
ANSI Part Number
GER150010EGW15
ISO Part Number
GER150-010E
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.50
Max Depth of Cut (Decimal)
0.12
Max Depth of Cut (Metric)
3
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
