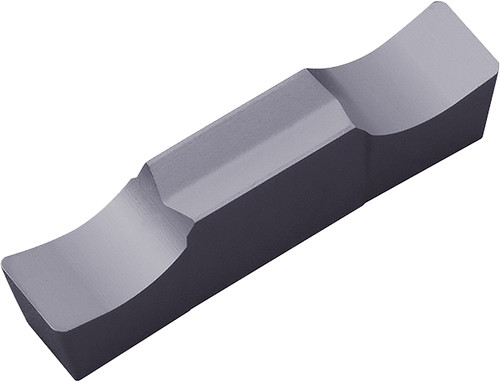

Kyocera GMG 4020040MG PR905 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJF12427
$68.38
Kyocera GMG 4020040MG PR905 Grade PVD Carbide, 4.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (K) Cast Iron

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Cast Iron
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Grade
PR905
Cutting Width
4 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.16
Style
GMG
Application
External Grooving
Chip Breaker Type
MG
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
4020040
Old Material Number
8830660
ANSI Part Number
GMG4020040MGPR905
ISO Part Number
GMG4020-040MG
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.16
Cutting Width Minimum (Metric)
4
Cutting Width Maximum (Decimal)
0.16
Cutting Width Maximum (Metric)
4
Max Depth of Cut (Decimal)
0.98
Max Depth of Cut (Metric)
25
Pack quantity
10
Kyocera GMG 4020040MG PR905 Grade PVD Carbide, Indexable Grooving Insert
$68.38
