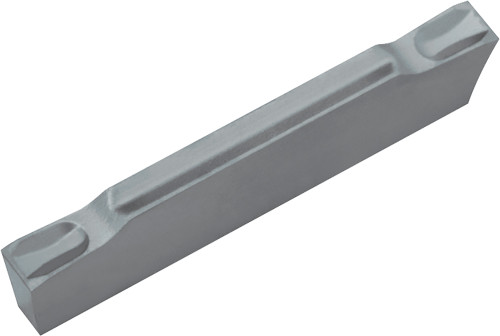

Kyocera Grooving Insert GMM1520RMT15D KW10: TWE12713

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE12713
$32.76

Kyocera KGM grooving insert for non-ferrous metals, irregular shape, positive rake, 2 cutting edges, finishing-medium cutting range, clamp insert holding, right hand. Carbide, uncoated. Manufacturer part number TWE12713.

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Insert Shape
Irregular
ANSI Designation
GMM1520RMT15DKW10
Cutting Width (Metric)
1.50
ISO Designation
GMM1520R-MT-15D
Cutting Width (Decimal)
0.0591
Insert Style
GMM
Corner Radius (Decimal)
0.0000
Chip Breaker Type
MT
Corner Radius (Metric)
0.00
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Insert Size
1520
Insert Thickness (Metric)
4.30
Machining Operations
Cut-Off, External Deep Grooving, External Grooving
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous to Light Interruption
Cutting Width Minimum (Decimal)
0.0591
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.0591
Cutting Width Maximum (Metric)
1.50
Maximum Depth of Cut (Decimal)
0.4528
Maximum Depth of Cut (Metric)
11.50
Pack quantity
10
Insert Grade
KW10
Insert Thickness (Decimal)
0.1690
Workpiece Material
Non-Ferrous
Kyocera Grooving Insert GMM1520RMT15D KW10: TWE12713
$32.76
