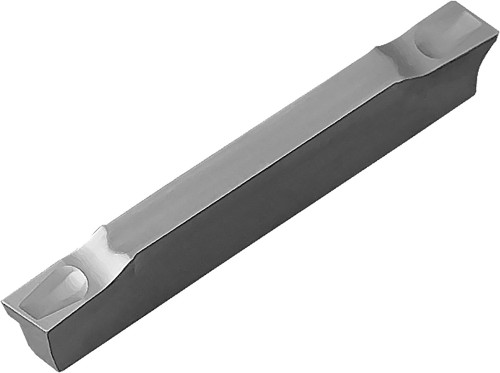

Kyocera GMM 2020MT KW10 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE12717
$32.76
Kyocera GMM 2020MT KW10 Grade Uncoated Carbide, 2.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Grade
KW10
Cutting Width
2 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.08
Style
GMM
Application
Cut-Off|External Deep Grooving|External Grooving
Chip Breaker Type
MT
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
2020
Old Material Number
8805600
ANSI Part Number
GMM2020MTKW10
ISO Part Number
GMM2020-MT
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Max Depth of Cut (Decimal)
0.67
Max Depth of Cut (Metric)
17
Pack quantity
10
Kyocera GMM 2020MT KW10 Grade Uncoated Carbide, Indexable Grooving Insert
$32.76
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
