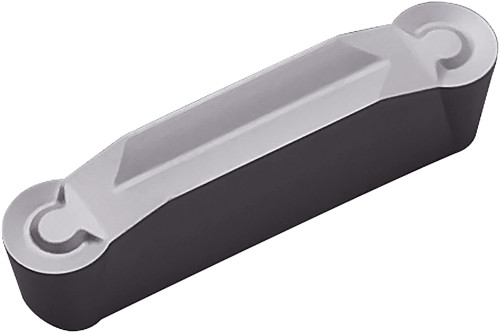

Kyocera GMM 3020150R PR915 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJG13010
$63.64
Kyocera GMM 3020150R PR915 Grade PVD Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
1.50
Grade
PR915
Cutting Width
3 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.12
Style
GMM
Application
Copying
Chip Breaker Type
R
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
3020150
Old Material Number
8811249
ANSI Part Number
GMM3020150RPR915
ISO Part Number
GMM3020-150R
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
Yes
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.06
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
0.79
Max Depth of Cut (Metric)
20
Pack quantity
10
Kyocera GMM 3020150R PR915 Grade PVD Carbide, Indexable Grooving Insert
$63.64
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
