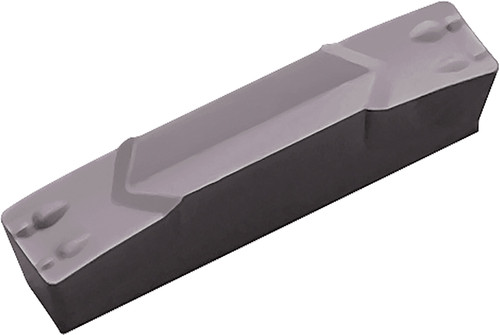

Kyocera GMM 4020080MW PR930 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT12822
$54.93
Kyocera GMM 4020080MW PR930 Grade PVD Carbide, 4.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.80
Corner Radius (Fractional)
1/32
Grade
PR930
Cutting Width
4 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.16
Style
GMM
Application
External Grooving|Traversing
Chip Breaker Type
MW
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
4020080
Old Material Number
8830609
ANSI Part Number
GMM4020080MWPR930
ISO Part Number
GMM4020-080MW
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.16
Cutting Width Minimum (Metric)
4
Cutting Width Maximum (Decimal)
0.16
Cutting Width Maximum (Metric)
4
Max Depth of Cut (Decimal)
0.98
Max Depth of Cut (Metric)
25
Pack quantity
10
