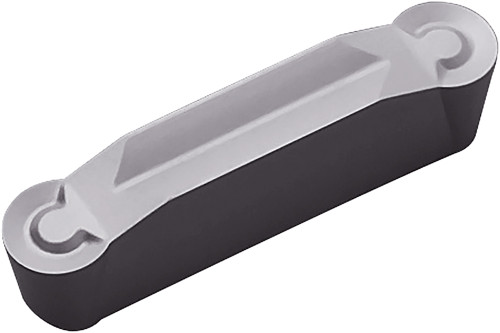

Kyocera GMM 4020200R PR905 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJF13020
$62.67
Kyocera GMM 4020200R PR905 Grade PVD Carbide, 4.00mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (K) Cast Iron

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Cast Iron
Corner Radius (Metric)
2
Corner Radius (Fractional)
5/64
Grade
PR905
Cutting Width
4 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.16
Style
GMM
Application
Copying
Chip Breaker Type
R
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
4020200
Old Material Number
8830629
ANSI Part Number
GMM4020200RPR905
ISO Part Number
GMM4020-200R
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
Yes
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.16
Cutting Width Minimum (Metric)
4
Cutting Width Maximum (Decimal)
0.16
Cutting Width Maximum (Metric)
4
Max Depth of Cut (Decimal)
0.98
Max Depth of Cut (Metric)
25
Pack quantity
10
