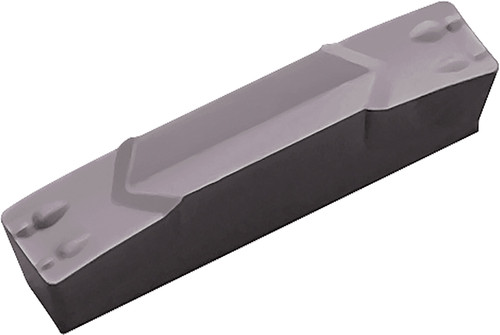

Kyocera Grooving Insert GMM8030080MW PR930: TKT12855

Kyocera Grooving Insert GMM8030080MW PR930, manufacturer part number TKT12855.

Specifications: Insert Thickness: 5.50 mm (0.2170 in); Corner Radius: 0.80 mm (1/32 in); Cutting Width: 8.00 mm (0.3150 in); Insert Holding Method: Clamp; Insert Length: 30.00 mm (1.1811 in); Old Material Number: 8801455; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 8.00 mm (0.3150 in); Cutting Width Maximum: 8.00 mm (0.3150 in); Maximum Depth of Cut: 25.00 mm (0.9843 in); Insert Shape: Irregular; Insert Size: 8030080; Insert Style: GMM; Hand Direction: Neutral; ANSI Designation: GMM8030080MWPR930; Chip Breaker Type: MW; ISO Designation: GMM8030-080MW; Machining Operations: External Grooving, Traversing; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: KGM. Unit of measure: Metric.
