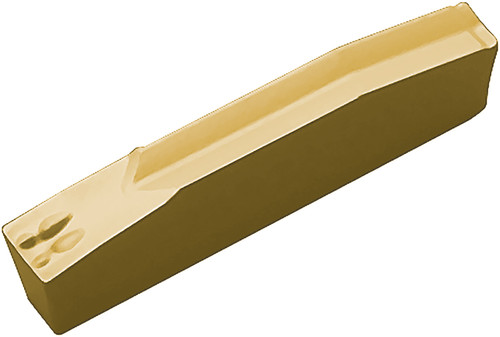

Kyocera GMN 22 CR9025 Grade CVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKW12500
$29.74
Kyocera GMN 22 CR9025 Grade CVD Carbide, 2.20mm Groove Width, Neutral Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.17
Grade
CR9025
Cutting Width
2.20 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.09
Style
GMN
Application
Cut-Off|External Deep Grooving|External Grooving
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
22
Old Material Number
8801456
ANSI Part Number
GMN22CR9025
ISO Part Number
GMN2.2
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Neutral
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.20
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.20
Max Depth of Cut (Decimal)
0.67
Max Depth of Cut (Metric)
17
Pack quantity
10
